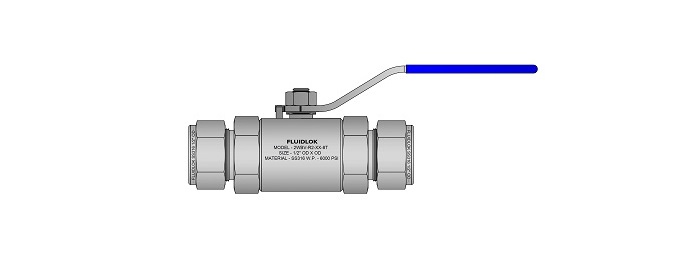

High Pressure Ball Valve - FLUIDLOK Tube OD X Tube OD
Application:
Features:
|
Specifications:
Testing:
|

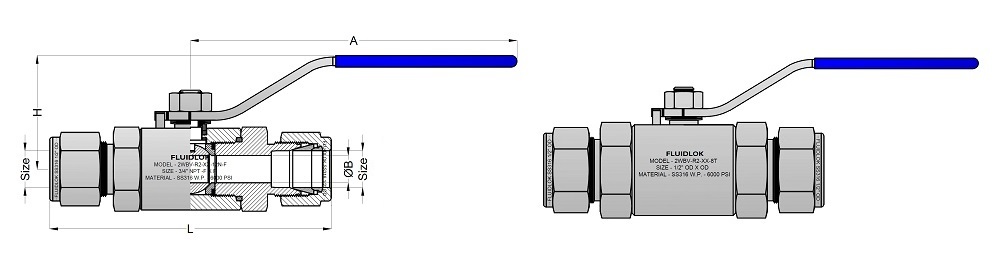

High Pressure Ball Valve - FLUIDLOK Tube OD X Tube OD
|
FLUIDLOK Part Number |
End Connection |
Ø B (mm) |
L (mm) |
A (mm) |
H (mm) |
|
|---|---|---|---|---|---|---|
| Size | Size | |||||
| 2WBV-R1-4T | 1/4" | 1/4" | 9.5 | -- | 113.5 | 39.5 |
| 2WBV-R1-6T | 3/8" | 3/8" | 7.0 | 92.3 | 113.5 | 39.5 |
| 2WBV-R1-8T | 1/2" | 1/2" | 9.5 | 98.0 | 113.5 | 39.5 |
| 2WBV-R2-12T | 3/4" | 3/4" | 12.7 | 108.0 | 113.5 | 43.2 |
| 2WBV-R3-16T | 1" | 1" | 19.0 | 107.4 | 145.0 | 49.8 |
| 2WBV-R1-6MT | 6 mm | 6 mm | -- | -- | 113.5 | 39.5 |
| 2WBV-R1-8MT | 8 mm | 8 mm | -- | -- | 113.5 | 39.5 |
| 2WBV-R1-10MT | 10 mm | 10 mm | 7.0 | 92.3 | 113.5 | 39.5 |
| 2WBV-R1-12MT | 12 mm | 12 mm | 9.5 | 95.0 | 113.5 | 39.5 |
| 2WBV-R1-15MT | 15 mm | 15 mm | 9.5 | 98.0 | 113.5 | 39.5 |
| 2WBV-R2-20MT | 20 mm | 20 mm | 12.7 | 108.0 | 113.5 | 43.2 |
| 2WBV-R2-22MT | 22 mm | 22 mm | 19.0 | 107.4 | 145.0 | 49.8 |
• Dimensions are for reference only. Subject to change.
