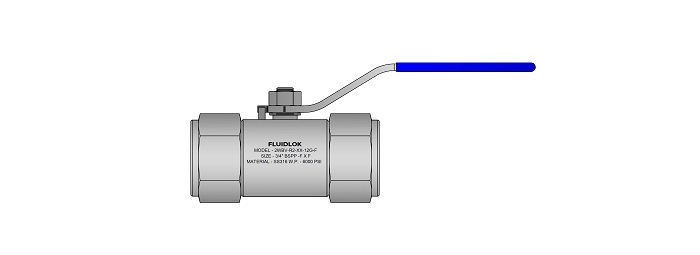

High Pressure Ball Valve - Female X Female


Application:

  • Most demanding applications in oil, gas & process control application.

Features:

  • Three piece design for ease of maintenance.
  • Anti-blow out internally loaded stem for safety.
  • High flow rate with maximum orifice.
  • Bi-directional floating ball design to ensure leak-proof shut-off.


Specifications:

  • Standard pressure rating up to 6000 psi (413 bars).
  • Standard DELRIN ball seat packing and optional PEEK or PCTFE ball seat packing.
  • Temperature rating for DELRIN packing 176°F (80°C), for PEEK packing 500°F (260°C) & PCTFE packing 500°F (260°C).

Testing:

  • Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
  • Pneumatic test: Seat - 1000 psi (69 bars).
  • Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

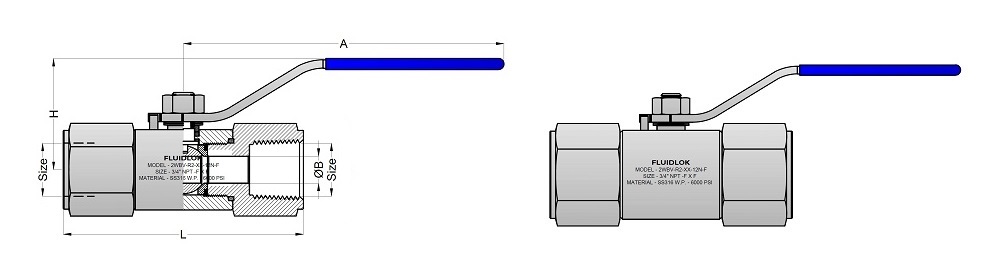

High Pressure Ball Valve - Female X Female
FLUIDLOK
Part Number
End Connection Ø B
(mm)
L
(mm)
A
(mm)
H
(mm)
Size Size
2WBV-R1-4N-F 1/4" 1/4" 9.5 68.0 113.5 39.5
2WBV-R1-4G-F 1/4" 1/4" 9.5 64.0 113.5 39.5
2WBV-R1-6N-F 3/8" 3/8" 9.5 74.0 113.5 39.5
2WBV-R1-6G-F 3/8" 3/8" 9.5 74.0 113.5 39.5
2WBV-R1-8N-F 1/2" 1/2" 9.5 85.0 113.5 39.5
2WBV-R1-8G-F 1/2" 1/2" 9.5 77.0 113.5 39.5
2WBV-R2-12N-F 3/4" 3/4" 12.7 95.0 113.5 43.2
2WBV-R2-12G-F 3/4" 3/4" 12.7 85.0 113.5 43.2
2WBV-R3-16N-F 1" 1" 19.0 115.0 145.0 49.8
2WBV-R3-16G-F 1" 1" 19.0 109.4 145.0 49.8

• Dimensions are for reference only. Subject to change.
