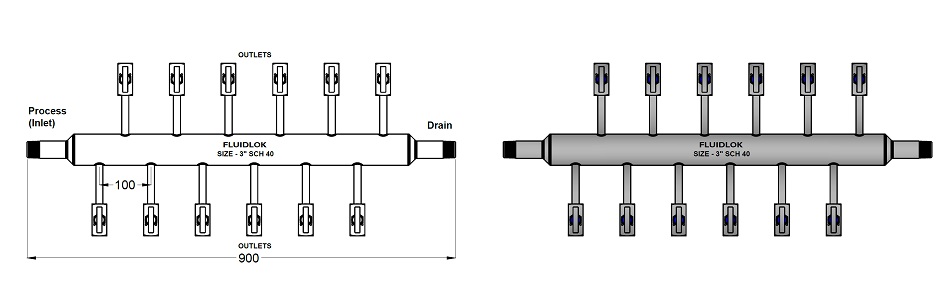

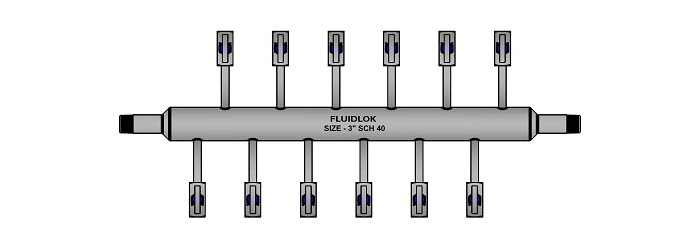

Air Header - 12 Way

Application:

• Air headers are mainly used for air distribution and to centralise multiple connections.

Features:

• Air headers are designed & configured in any layout to fit application as per customer's requirement.

Testing:

• All air headers are 100% factory tested and conformed to PED Module A SEP.

Specifications:

• Standard pressure rating up to 3000 psi (207 bars).
• Process connection (inlet) can be 1/2" NPT #3000 Coupling, Ball valve or Needle valve.
• Drain connection 1/2" NPT Coupling, Ball valve or Needle valve.
• Outlet ports are available in single or double side.
• Air header type 4-way, 6-way, 8-way, 10-way, 12-way, 16-way.
• Pipe size 2", 3", 4" & larger size available upon request.
• Schedule size 40, 80 & 160.
• Material of constructon in SS316, SS304, CS, ASTM A106 Gr B.
