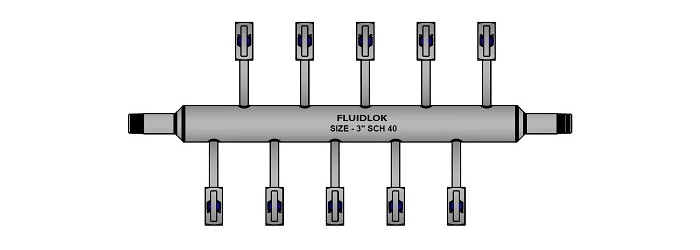

Air Header - 10 Way

Air headers are mainly used for air distribution and to centralise multiple connections.

Standard pressure rating up to 3000 psi (207 bars).
Process connection (inlet) can be 1/2" NPT #3000 Coupling, Ball valve or Needle valve.
Drain connection 1/2" NPT Coupling, Ball valve or Needle valve.
Outlet ports are available in single or double side.
Air header type 4-way, 6-way, 8-way, 10-way, 12-way, 16-way.
Pipe size 2", 3", 4" & larger size available upon request.
Schedule size 40, 80 & 160.
Material of constructon in SS316, SS304, CS, ASTM A106 Gr B.

Air headers are designed & configured in any layout to fit application as per customer's requirement.

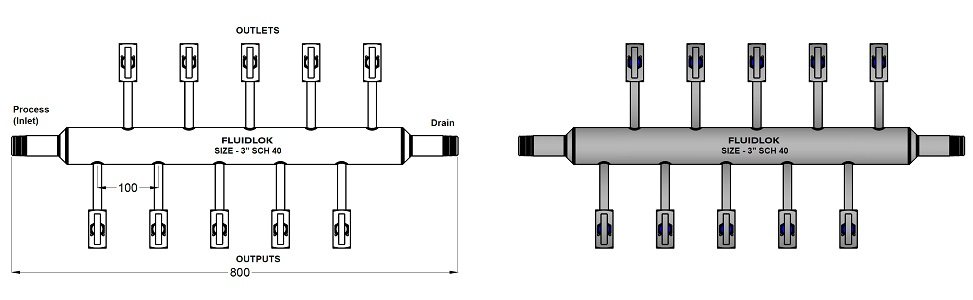

Air Header - 10 Way

• Dimensions are for reference only. Subject to change.
