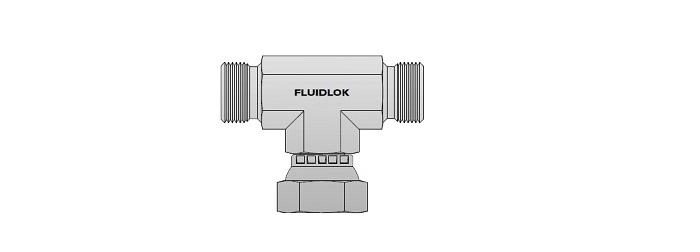

Cone Female Swivel Branch Tee
Cone Female Swivel Branch Tee
|
FLUIDLOK Part Number |
T (BSPP) |
Swivel |
T (UN/UNF-2B) |
L (mm) |
L1 (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| 2-ST | 1/8" | 1/8" | 5/16"-24 | 20.0 | 21.5 | 3.5 | 1/2 |
| 4-ST | 1/4" | 1/4" | 7/16"-20 | 25.0 | 27.5 | 5.1 | 9/16 |
| 6-ST | 3/8" | 3/8" | 9/16"-18 | 30.0 | 34.5 | 8.1 | 11/16 |
| 8-ST | 1/2" | 1/2" | 3/4"-16 | 35.0 | 41.5 | 11.1 | 3/4 |
| 10-ST | 5/8" | 5/8" | 7/8"-14 | 38.0 | 46.5 | 14.3 | 7/8 |
| 12-ST | 3/4" | 3/4" | 1.1/16"-12 | 42.0 | 56.0 | 16.7 | 1.1/16 |
| 16-ST | 1" | 1" | 1.5/16"-12 | 47.0 | 62.5 | 22.2 | 1.7/16 |
• Dimensions are for reference only. Subject to change.
