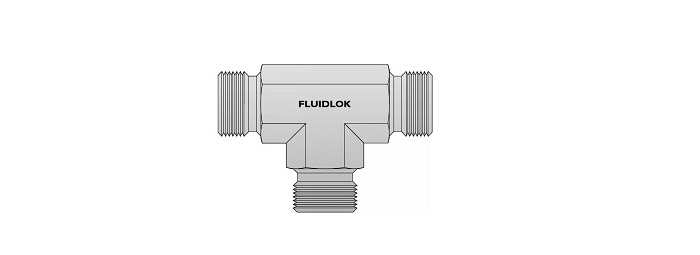

Cone Equal Tee
Cone Equal Tee
|
FLUIDLOK Part Number |
T (BSPP) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|
| 2-CET | 1/8" | 20.0 | 3.5 | 3/8 |
| 4-CET | 1/4" | 26.0 | 5.1 | 9/16 |
| 6-CET | 3/8" | 30.0 | 8.1 | 11/16 |
| 8-CET | 1/2" | 35.0 | 11.1 | 7/8 |
| 10-CET | 5/8" | 38.0 | 14.3 | 15/16 |
| 12-CET | 3/4" | 42.0 | 16.7 | 1.1/16 |
| 16-CET | 1" | 47.0 | 22.2 | 1.7/16 |
| 20-CET | 1.1/4" | 52.0 | 28.7 | 1.13/16 |
| 24-CET | 1.1/2" | 60.0 | 33.3 | 2 |
| 32-CET | 2" | 70.0 | 46.0 | 2.3/8 |
• Dimensions are for reference only. Subject to change.
