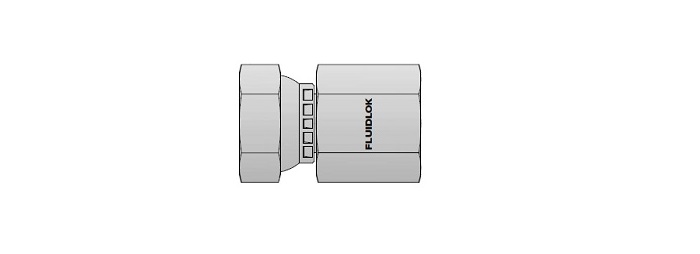

Swivel Female Adaptor - NPT
Cone Swivel Adaptor
|
FLUIDLOK Part Number |
Swivel |
T (UN/UNF-2B) |
Tx (NPT) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| 4- | 1/4" | 7/16"-20 | 1/4" | 33.5 | 5.1 | 3/4 |
| 1/4" | 7/16"-20 | 3/8" | 38.5 | 5.1 | 7/8 | |
| 3/8" | 9/16"-18 | 1/4" | 33.5 | 8.1 | 3/4 | |
| 3/8" | 9/16"-18 | 3/8" | 37.0 | 8.1 | 7/8 | |
| 3/8" | 9/16"-18 | 1/2" | 46.7 | 8.1 | 1.1/16 | |
| 1/2" | 3/4"-16 | 3/8" | 41.5 | 11.1 | 7/8 | |
| 1/2" | 3/4"-16 | 1/2" | 48.5 | 11.1 | 1.1/16 | |
| 1/2" | 3/4"-16 | 3/4" | 58.0 | 11.1 | 1.1/4 | |
| 3/4" | 1.1/16"-12 | 1/2" | 49.6 | 16.7 | 1.1/16 | |
| 3/4" | 1.1/16"-12 | 3/4" | 59.1 | 16.7 | 1.1/4 | |
| 3/4" | 1.1/16"-12 | 1" | 68.5 | 16.7 | 1.5/8 | |
| 1" | 1.5/16"-12 | 3/4" | 60.3 | 22.2 | 1.3/8 | |
| 1" | 1.5/16"-12 | 1" | 69.8 | 22.2 | 1.5/8 |
• Dimensions are for reference only. Subject to change.
