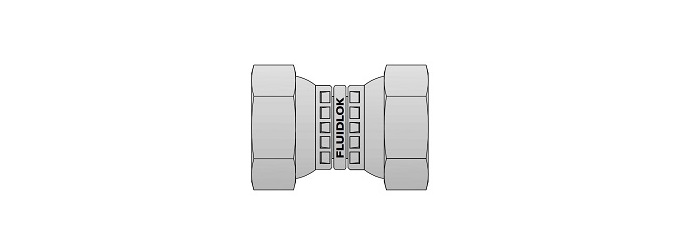

Swivel Equal Adaptor

FLUIDLOK Part Number	Swivel	T (UN/UNF-2B)	L (mm)	Ø D (mm)
2-SEA	1/8"	5/16"-24	25.2	3.5
4-SEA	1/4"	7/16"-20	30.0	7.5
6-SEA	3/8"	9/16"-18	36.4	8.1
8-SEA	1/2"	3/4"-16	44.0	9.7
10-SEA	5/8"	7/8"-14	49.0	12.0
12-SEA	3/4"	1.1/16"-12	61.5	15.5
16-SEA	1"	1.5/16"-12	73.5	20.4

---

• Dimensions are for reference only. Subject to change.
