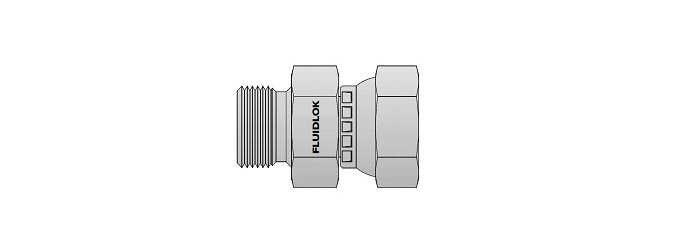

Cone Swivel Adaptor
Cone Swivel Adaptor
|
FLUIDLOK Part Number |
T (BSPP) |
Swivel |
Tx (UN/UNF-2B) |
L (mm) |
Ø D (mm) |
Ø D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|---|
| 2-CSA-2 | 1/8" | 1/8" | 5/16"-24 | 26.5 | 3.5 | 3.5 | 9/16 |
| 2-CSA-4 | 1/8" | 1/4" | 7/16"-20 | 28.5 | 3.5 | 3.5 | 9/16 |
| 4-CSA-4 | 1/4" | 1/4" | 7/16"-20 | 31.5 | 5.1 | 5.1 | 3/4 |
| 4-CSA-6 | 1/4" | 3/8" | 9/16"-18 | 35.0 | 5.1 | 7.5 | 3/4 |
| 4-CSA-8 | 1/4" | 1/2' | 3/4"-16 | 38.5 | 5.1 | 9.7 | 3/4 |
| 6-CSA-6 | 3/8" | 3/8" | 9/16"-18 | 38.5 | 8.1 | 8.1 | 7/8 |
| 6-CSA-8 | 3/8" | 1/2" | 3/4"-16 | 42.0 | 8.1 | 9.7 | 7/8 |
| 6-CSA-10 | 3/8" | 5/8" | 7/8"-14 | 44.5 | 8.1 | 12.0 | 7/8 |
| 8-CSA-6 | 1/2" | 3/8" | 9/16"-18 | 43.0 | 11.1 | 7.5 | 1.1/16 |
| 8-CSA-8 | 1/2" | 1/2" | 3/4"-16 | 46.5 | 10.0 | 10.0 | 1.1/16 |
| 8-CSA-12 | 1/2" | 3/4" | 1.1/16"-12 | 55.0 | 11.1 | 15.5 | 1.1/16 |
| 10-CSA-8 | 5/8" | 1/2" | 3/4"-16 | 48.0 | 14.3 | 9.7 | 1.3/16 |
| 10-CSA-10 | 5/8" | 5/8" | 7/8"-14 | 50.5 | 14.3 | 14.3 | 1.3/16 |
| 10-CSA-12 | 5/8" | 3/4" | 1.1/16"-12 | 56.5 | 14.3 | 15.5 | 1.3/16 |
| 12-CSA-10 | 3/4" | 5/8" | 7/8"-14 | 52.5 | 16.7 | 12.0 | 1.1/4 |
| 12-CSA-12 | 3/4" | 3/4" | 1.1/16"-12 | 58.5 | 16.7 | 16.7 | 1.1/4 |
| 12-CSA-16 | 3/4" | 1" | 1.5/16"-12 | 65.5 | 16.7 | 20.45 | 1.1/4 |
| 16-CSA-12 | 1" | 3/4" | 1.1/16"-12 | 63.0 | 22.2 | 15.5 | 1.5/8 |
| 16-CSA-16 | 1" | 1" | 1.5/16"-12 | 68.5 | 22.2 | 22.2 | 1.5/8 |
• Dimensions are for reference only. Subject to change.
