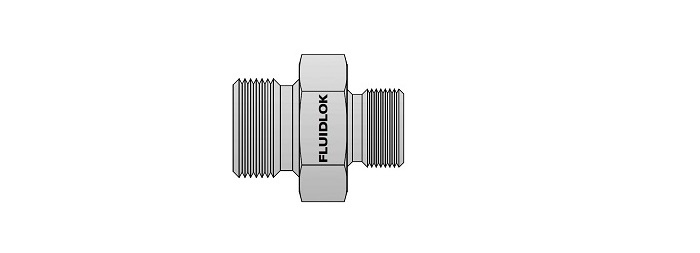

Cone Reducing Adaptor
Cone Reducing Adaptor
|
FLUIDLOK Part Number |
T (BSPP) |
T (BSPP) |
L (mm) |
Ø D (mm) |
Ø D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| 4-CRA-2 | 1/4" | 1/8" | 26.1 | 5.1 | 3.5 | 3/4 |
| 6-CRA-2 | 3/8" | 1/8" | 28.1 | 8.1 | 3.5 | 7/8 |
| 6-CRA-4 | 3/8" | 1/4" | 31.1 | 8.1 | 5.1 | 7/8 |
| 8-CRA-4 | 1/2" | 1/4" | 35.1 | 11.1 | 5.1 | 1.1/16 |
| 8-CRA-6 | 1/2" | 3/8" | 36.1 | 11.1 | 8.1 | 1.1/16 |
| 10-CRA-8 | 5/8" | 1/2" | 42.1 | 14.3 | 11.1 | 1.3/16 |
| 12-CRA-4 | 3/4" | 1/4" | 39.1 | 16.7 | 5.1 | 1.1/4 |
| 12-CRA-6 | 3/4" | 3/8" | 40.1 | 16.7 | 8.1 | 1.1/4 |
| 12-CRA-8 | 3/4" | 1/2" | 42.1 | 16.7 | 11.1 | 1.1/4 |
| 12-CRA-10 | 3/4" | 5/8" | 44.1 | 16.7 | 14.3 | 1.1/4 |
| 16-CRA-4 | 1" | 1/4" | 42.1 | 22.2 | 5.1 | 1.5/8 |
| 16-CRA-6 | 1" | 3/8" | 43.1 | 22.2 | 8.1 | 1.5/8 |
| 16-CRA-8 | 1" | 1/2" | 45.1 | 22.2 | 11.1 | 1.5/8 |
| 16-CRA-12 | 1" | 3/4" | 47.1 | 22.2 | 16.7 | 1.5/8 |
| 20-CRA-12 | 1.1/4" | 3/4" | 50.1 | 28.6 | 16.7 | 2 |
| 20-CRA-16 | 1.1/4" | 1" | 53.1 | 28.6 | 22.2 | 2 |
| 24-CRA-12 | 1.1/2" | 3/4" | 52.1 | 33.3 | 16.7 | 2.1/8 |
| 24-CRA-16 | 1.1/2" | 1" | 55.1 | 33.3 | 22.2 | 2.1/8 |
| 24-CRA-20 | 1.1/2" | 1.1/4" | 56.0 | 33.3 | 28.6 | 2.1/8 |
| 32-CRA-16 | 2" | 1" | 62.1 | 46.0 | 22.2 | 2.3/4 |
| 32-CRA-20 | 2" | 1.1/4" | 63.1 | 46.0 | 28.6 | 2.3/4 |
| 32-CRA-24 | 2" | 1.1/2" | 65.1 | 46.0 | 33.3 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
