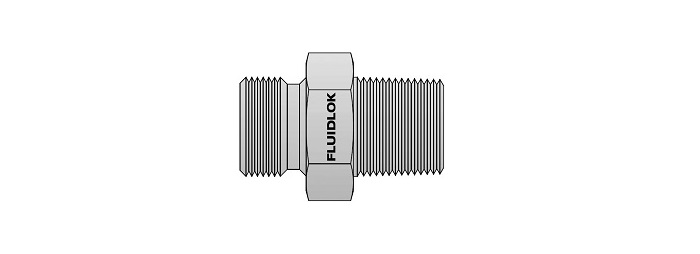

Cone Male Adaptor - NPT
Cone Male Adaptor - NPT
|
FLUIDLOK Part Number |
T (BSPP) |
Tx (NPT) |
L (mm) |
Ø D (mm) |
Ø D1 (mm) |
H (Inch) |
|---|---|---|---|---|---|---|
| 2-CMA-2N | 1/8" | 1/8" | 25.0 | 3.5 | 5.5 | 9/16 |
| 2-CMA-2 | 1/8" | 1/4" | 30.0 | 3.5 | 7.5 | 9/16 |
| 4-CMA-2 | 1/4" | 1/8" | 28.0 | 5.1 | 4.7 | 3/4 |
| 4-CMA-4 | 1/4" | 1/4" | 32.0 | 5.1 | 7.5 | 3/4 |
| 4-CMA-6 | 1/4" | 3/8" | 32.0 | 5.1 | 10.3 | 3/4 |
| 4-CMA-8 | 1/4" | 1/2" | 37.1 | 5.1 | 13.5 | 7/8 |
| 6-CMA-2 | 3/8" | 1/8" | 29.7 | 8.1 | 4.7 | 7/8 |
| 6-CMA-4 | 3/8" | 1/4" | 35.0 | 8.1 | 7.5 | 7/8 |
| 6-CMA-6 | 3/8" | 3/8" | 35.0 | 8.1 | 10.7 | 7/8 |
| 6-CMA-8 | 3/8" | 1/2" | 38.9 | 8.1 | 13.5 | 1.1/16 |
| 8-CMA-4 | 1/2" | 1/4" | 38.3 | 11.1 | 7.5 | 1.1/16 |
| 8-CMA-6 | 1/2" | 3/8" | 38.3 | 11.1 | 11.1 | 1.1/16 |
| 8-CMA-8 | 1/2" | 1/2" | 43.1 | 11.1 | 13.5 | 1.1/16 |
| 8-CMA-12 | 1/2" | 3/4" | 43.1 | 11.1 | 19.1 | 1.1/16 |
| 8-CMA-16 | 1/2" | 1" | 50.0 | 11.1 | 23.8 | 1.3/8 |
| 10-CMA-8 | 5/8" | 1/2" | 47.1 | 13.5 | 13.5 | 1.3/16 |
| 12-CMA-8 | 3/4" | 1/2" | 47.0 | 16.7 | 13.5 | 1.1/4 |
| 12-CMA-12 | 3/4" | 3/4" | 48.0 | 16.7 | 18.6 | 1.1/4 |
| 12-CMA-16 | 3/4" | 1" | 52.0 | 16.7 | 23.8 | 1.3/8 |
| 12-CMA-20 | 3/4" | 1.1/4" | 55.2 | 16.7 | 31.7 | 1.3/4 |
| 16-CMA-8 | 1" | 1/2" | 50.1 | 22.2 | 13.5 | 1.5/8 |
| 16-CMA-12 | 1" | 3/4" | 51.0 | 22.2 | 19.1 | 1.5/8 |
| 16-CMA-16 | 1" | 1" | 55.0 | 22.2 | 23.8 | 1.5/8 |
| 16-CMA-20 | 1" | 1.1/4" | 59.0 | 22.2 | 31.7 | 1.3/4 |
| 16-CMA-24 | 1" | 1.1/2" | 59.4 | 22.2 | 38.1 | 2 |
| 20-CMA-12 | 1.1/4" | 3/4" | 53.1 | 28.6 | 19.1 | 2 |
| 20-CMA-16 | 1.1/4" | 1" | 61.0 | 28.6 | 24.2 | 2 |
| 20-CMA-20 | 1.1/4" | 1.1/4" | 62.0 | 28.6 | 31.7 | 2 |
| 20-CMA-24 | 1.1/4" | 1.1/2" | 60.0 | 28.6 | 38.1 | 2 |
| 20-CMA-32 | 1.1/4" | 2" | 61.0 | 28.6 | 49.2 | 2.5/8 |
| 24-CMA-16 | 1.1/2" | 1" | 61.0 | 33.3 | 23.8 | 2.1/4 |
| 24-CMA-20 | 1.1/2" | 1.1/4" | 60.5 | 33.3 | 31.7 | 2.1/4 |
| 24-CMA-24 | 1.1/2" | 1.1/2" | 61.5 | 33.3 | 38.1 | 2.1/4 |
| 24-CMA-32 | 1.1/2" | 2" | 69.0 | 33.3 | 49.2 | 2.5/8 |
| 32-CMA-20 | 2" | 1.1/4" | 67.6 | 46.0 | 31.7 | 2.3/4 |
| 32-CMA-24 | 2" | 1.1/2" | 68.0 | 46.0 | 38.1 | 2.3/4 |
| 32-CMA-32 | 2" | 2" | 72.0 | 46.0 | 46.0 | 2.3/4 |
• Dimensions are for reference only. Subject to change.
