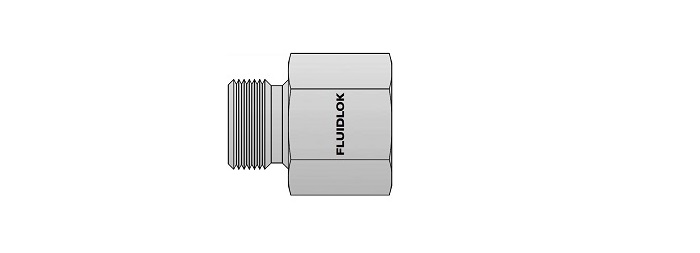

Cone Female Adaptor - NPT
Cone Female Adaptor - NPT
|
FLUIDLOK Part Number |
T (BSPP) |
T (NPT) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2-CFA-2N | 1/8" | 1/8" | 25.4 | 3.5 | 9/16 |
| 4-CFA-4N | 1/4" | 1/4" | 33.2 | 5.1 | 3/4 |
| 6-CFA-6N | 3/8" | 3/8" | 36.1 | 8.1 | 7/8 |
| 8-CFA-8N | 1/2" | 1/2" | 41.1 | 11.1 | 1.1/16 |
| 10-CFA-10N | 5/8" | 5/8" | 43.1 | 14.3 | 1.3/16 |
| 12-CFA-12N | 3/4" | 3/4" | 46.1 | 16.7 | 1.3/8 |
| 16-CFA-16N | 1" | 1" | 55.1 | 22.2 | 1.5/8 |
• Dimensions are for reference only. Subject to change.
