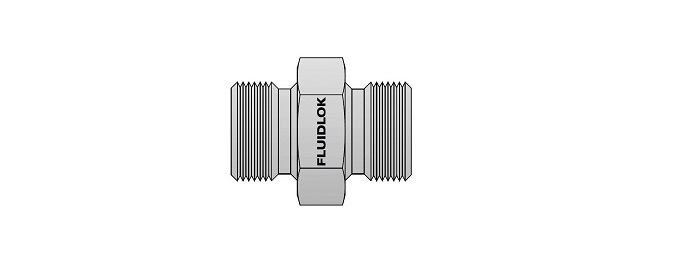

Cone Equal Adaptor
Cone Equal Adaptor
|
FLUIDLOK Part Number |
T (BSPP) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|
| 2-CEA | 1/8" | 21.1 | 3.5 | 9/16" |
| 4-CEA | 1/4" | 29.1 | 5.1 | 3/4" |
| 6-CEA | 3/8" | 32.1 | 8.1 | 7/8" |
| 8-CEA | 1/2" | 38.1 | 11.1 | 1.1/16" |
| 10-CEA | 5/8" | 44.1 | 14.3 | 1.3/16" |
| 12-CEA | 3/4" | 44.1 | 16.7 | 1.1/4" |
| 16-CEA | 1" | 50.1 | 22.2 | 1.5/8" |
| 20-CEA | 1.1/4" | 54.1 | 28.7 | 2" |
| 24-CEA | 1.1/2" | 58.1 | 33.3 | 2.1/4" |
| 32-CEA | 2" | 68.1 | 46.0 | 2.7/8" |
• Dimensions are for reference only. Subject to change.
