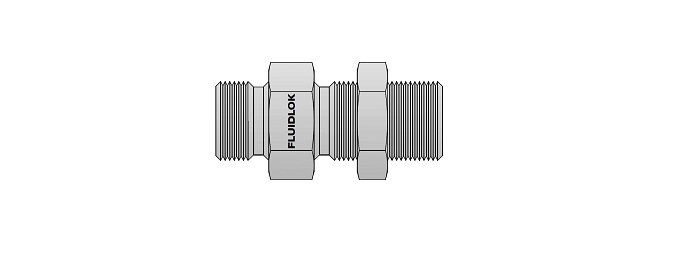

Cone Bulkhead Adaptor
Cone Bulkhead Adapor
|
FLUIDLOK Part Number |
T (BSPP) |
Tx (BSPP) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2-CBHA | 1/8" | 1/8" | 38 | 3.5 | 9/16" |
| 4-CBHA | 1/4" | 1/4" | 47 | 5.1 | 3/4" |
| 6-CBHA | 3/8" | 3/8" | 52 | 8.1 | 7/8" |
| 8-CBHA | 1/2" | 1/2" | 60 | 11.1 | 1.1/16" |
| 10-CBHA | 5/8" | 5/8" | 64 | 14.3 | 1.3/16" |
| 12-CBHA | 3/4" | 3/4" | 66 | 16.7 | 1.1/4" |
| 16-CBHA | 1" | 1" | 74 | 22.2 | 1.5/8" |
| 20-CBHA | 1.1/4" | 1.1/4" | 81 | 28.7 | 2" |
| 24-CBHA | 1.1/2" | 1.1/2" | 88 | 33.3 | 2.1/4" |
| 32-CBHA | 2" | 2" | 95 | 46.0 | 2.7/8" |
• Dimensions are for reference only. Subject to change.
