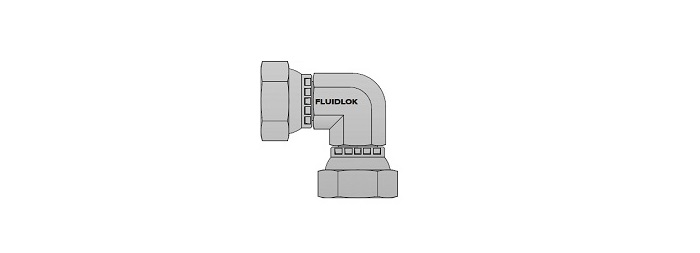

Swivel Equal Elbow
Swivel Equal Elbow
|
FLUIDLOK Part Number |
T (Swivel) |
T (UN/UNF-2B) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|---|
| 2-ST | 1/8" | 5/16"-24 | 3.5 | 9/16 | |
| 4-ST | 1/4" | 7/16"-20 | 5.1 | 3/4 | |
| 6-ST | 3/8" | 9/16"-18 | 8.1 | 7/8 | |
| 8-ST | 1/2" | 3/4"-16 | 11.1 | 1.1/16 | |
| 10-ST | 5/8" | 7/8"-14 | 14.3 | 1.3/16 | |
| 12-ST | 3/4" | 1.1/16"-12 | 16.7 | 1.1/4 | |
| 16-ST | 1" | 1.5/16"-12 | 22.2 | 1.5/8 |
• Dimensions are for reference only. Subject to change.
