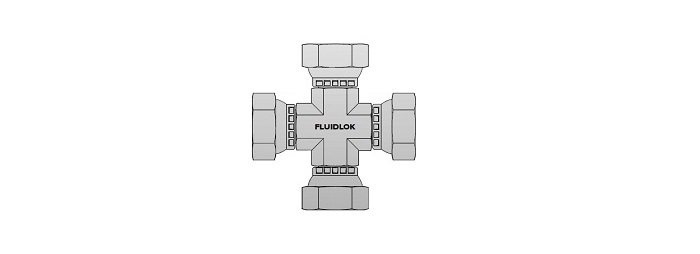

Swivel Equal Cross
Swivel Equal Cross
|
FLUIDLOK Part Number |
T (BSPP) |
L (mm) |
Ø D (mm) |
H (Inch) |
|---|---|---|---|---|
| 2-SC | 1/8" | 3.5 | 1/2 | |
| 4-SC | 1/4" | 5.1 | 9/16 | |
| 6-SC | 3/8" | 8.1 | 11/16 | |
| 8-SC | 1/2" | 11.1 | 3/4 | |
| 10-SC | 5/8" | 14.3 | 7/8 | |
| 12-SC | 3/4" | 16.7 | 1.1/16 | |
| 16-SC | 1" | 22.2 | 1.7/16 |
• Dimensions are for reference only. Subject to change.
