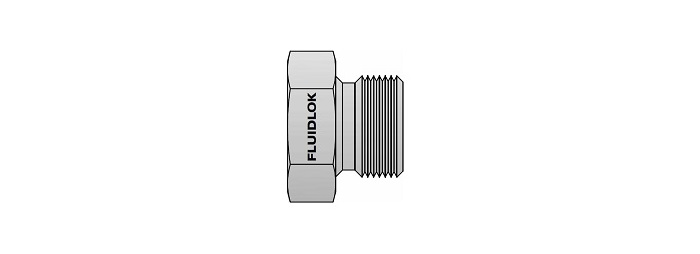

Cone Hydraulic Plug

FLUIDLOK Part Number	T (BSPP)	L (mm)	H (Inch)
2-CP	1/8"	16.0	9/16
4-CP	1/4"	18.0	3/4
6-CP	3/8"	21.0	7/8
8-CP	1/2"	24.0	1.1/16
10-CP	5/8"	27.0	1.3/16
12-CP	3/4"	28.0	1.1/4
16-CP	1"	32.0	1.5/8
20-CP	1.1/4"	37.0	2
24-CP	1.1/2"	40.0	2.1/8
32-CP	2"	46.0	2.3/4

---

• Dimensions are for reference only. Subject to change.
