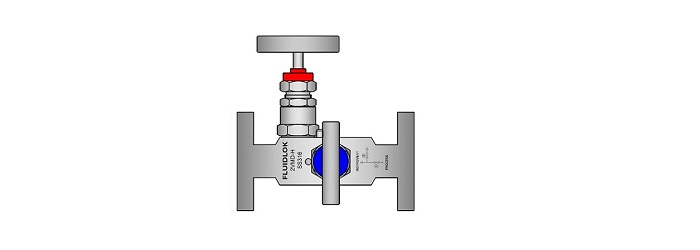

2 Way Direct Mount Valve (2VMD-H)

2 Way Direct Mount Valve (2VMD-H)
  • This Manifold is use for direct mounting to pressure and differential pressure transmitters either manifold is used for connect a static pressure instrument transmitter with standard flange connection.
Product Information

Features:

  • Forged body outside screwed bonnet.
  • Connection at 180°.
  • Process connection : 1/2" NPT ANSI B1.20.1
  • Instrument connection : 1/2" NPT ANSI B1.20.1
  • Drain : 1/4" NPT-F ANSI B1.20.1




  • Connection options : NPT, BSPT, BSP & Socket Weld.
  • Working pressure : 6000 psi (413 bar).
  • Stem packing : PTFE (standard), GRAPHOIL (optional).
  • Temperature : PTFE 450°F (232°C) & GRAPHOIL 700°F (371°C).
  • Variety Material : SS, CS, F11, Hastelloy, Monel, etc.

Testing:

  • All valves are 100% factory tested.


Testing Standard:

  • According to MSS-SP-61 and EN 12266-1.




2 Valves Manifold Direct Mount (2VMD-H)
Manifold Valve Includes

Hex Pipe Plug 1/4" NPT (PHP-4N)
Flange Mounting Bolts - High Tensile Carbon Steel
Flange Gasket - PTFE

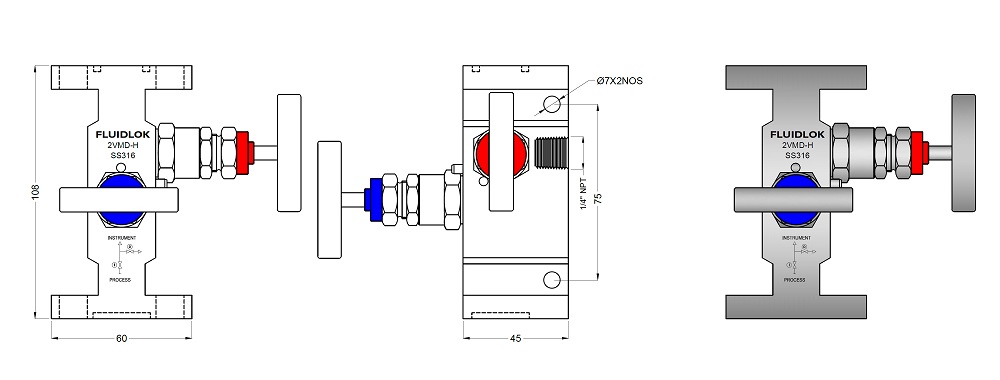

• Dimensions are for reference only. Subject to change.


Caution

⚠️ Valves that have not been cycled for a period of time may have a higher initial actuation torque.
